Powder coating oven M
Powdercoat Oven model M

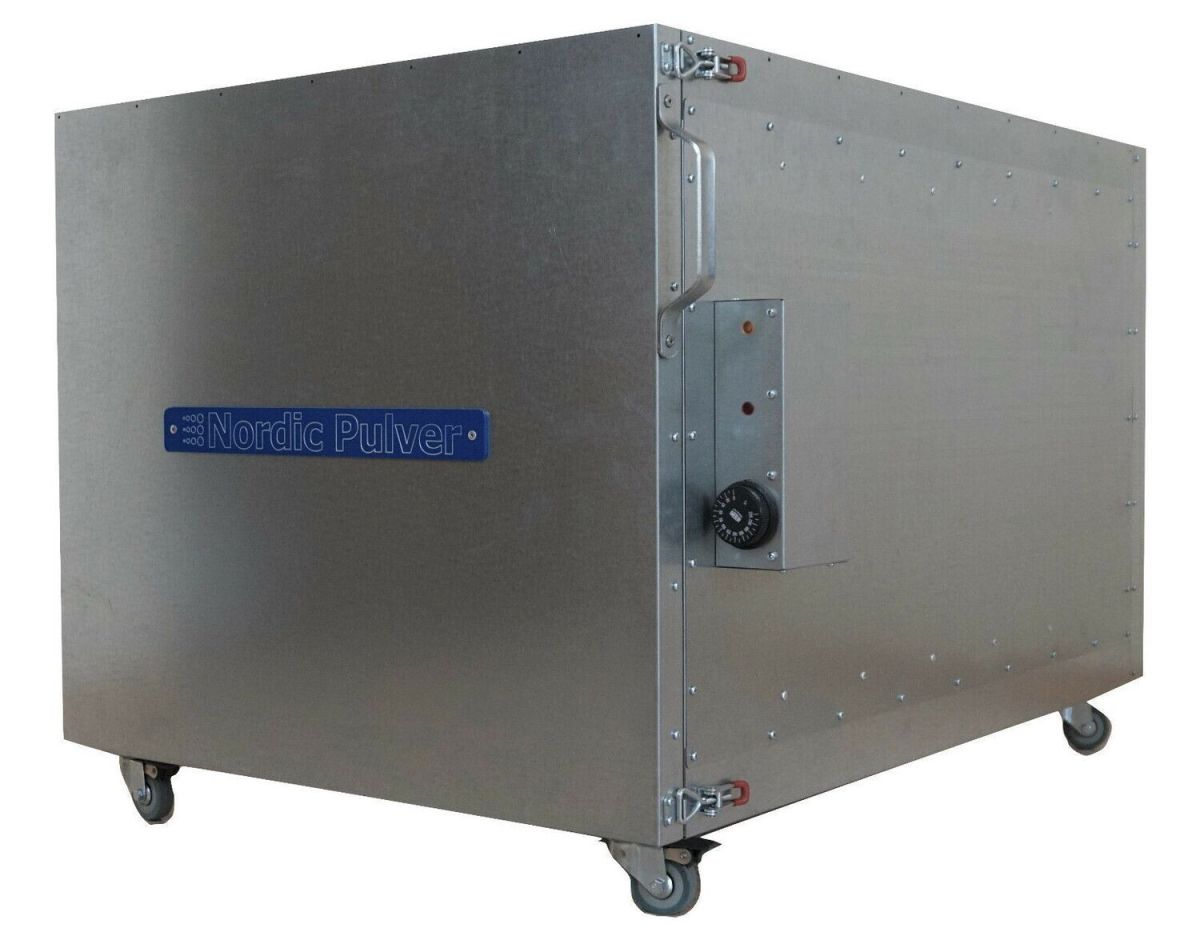

The curing oven model M is designed and built for medium-sized objects. The powder coating oven has an internal dimension of 54x60x90 cm (H x W x D) and is therefore also suitable for rims up to 21". This oven is equipped with a 1300W heating element and reaches a maximum temperature of 220°C.
The oven is made of high-quality laser-cut galvanised steel plates wrapped with 30 mm thick rock wool insulation, and the inner surfaces of the oven are covered with thin aluminium plates to reduce heating time.
The Model M drying oven is a perfect choice for hobby powder coaters or small companies that are short of space in their production facilities and are looking for the professional, durable and reliable powder coating oven.
| External dimensions | 67x75x96 cm (H x W x D) |
| Inside size | 54x60x90 cm (H x W x D) |
| Temperature range | 0-220°C |
| 20°C to 180°C in | 25min (220°C in 35min) |
| Temperature control | Analogue thermostat control |
| Voltage | 230V Single-phase (50 Hz) |
| Power | 1.3kW |
| Materials | Laser-cut galvanised steel; 30 mm insulation |
| Weight | 30 kg |
| Warranty | 2 years |
